In aviation, maintenance backlogs are long, MRO shop turnaround times run behind schedule and every grounded aircraft raises the stakes. The bottleneck isn’t always the work itself, it’s everything between it.



The hidden advantage? SMARTER STORAGE.



BENEFITS THAT ELEVATE

GAIN FLOOR SPACE

Add more floor space to the MRO shop by storing more maintenance supplies and aircraft components in a single, enclosed vertical storage unit within a compact footprint, without expanding into crucial hangar space.

CONTROL INVENTORY

Streamline stock levels of expensive aircraft parts while tracking the day-to-day inventory of maintenance tools and MRO parts within a single machine.

INCREASE PRODUCTIVITY

Boost aircraft maintenance technician productivity by organizing engine blades and aircraft maintenance tools for faster retrieval during MRO operations.

IMPROVE ERGONOMICS

Heavy loads can be easily accessed using folding guide rails to guide items on to a crane to use in the shop.

ENHANCE SECURITY

Secure valuable aircraft components within an enclosed machine using the badge scanner option to document each interaction.



SOLUTIONS THAT DELIVER

The Hänel Rotomat®

Vertical Carousel

Using the ferris wheel principle, the Rotomat vertical storage carousel chooses the quickest delivery option to retrieve stored goods with bi-directional rotation technology.

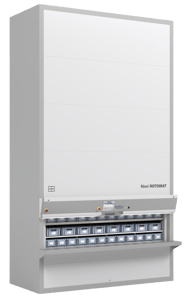

Stock-Motiv_Rotomat_Lagerlift[49]-1-1-2
Commonly Stored

Ideal for like-sized or small parts such as rivets, o-rings, connectors, bearings, and hardware kits.

Best for smaller items that require fast access and are included in consistent pick orders.

Standard Features

Dual-Motor design allowing for heavier loads and machine longevity.

Load imbalance warning device to prevent unsafe operating conditions.

Threshold sensors to immediately halt the machine when disrupted to keep operators safe.

Multi-point shelf anchors for maximum shelf stability.

Barcode scanner connection for fast item identification.

Aviation Upgrades

LED Light Bar for immediate compartment identification when picking.

ESD storage options for sensitive electrical components.

Multi-level access points to reduce time spent waiting for critical parts.

RFID Badge Scanners for secure access for authorized users.

HänelSoft inventory management software for supporting  advanced tracking that includes part images and visibility across both static shelving and Hänel machine inventory.

Specs

Max Machine Height: 30 Feet

Max Machine Width: 3,420 mm

Max Payload per Carrier: 1,653 lbs

Max Payload per Machine: 3,5494 lbs

Max Shelf Depth: 640 mm

Max Shelf Width: 2,915 mm

Shelf Configuration Options (additional options available):

  • Open Shelves
  • Intermediate Shelves (Variable Sizing)
  • Pull-Out Drawers (Variable Sizing)
  • Static Shelf Lips (Variable Sizing)
  • Lowering Front Shelf Walls (Variable Sizing)

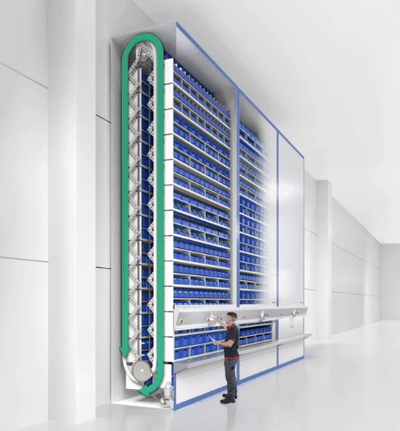

The Principle

Rotomat-Lagerlift Landingpage

The Hänel Lean-Lift®

Vertical Lift Module

Using the elevator principle to automatically retrieve and organize stored goods, the Lean-Lift vertical lift module provides hyper-customized options for every aviation application.

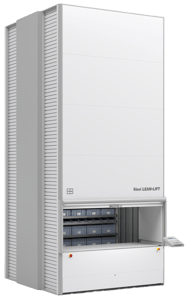

Stock-Motiv_Lean-Lift-1-1
Commonly Stored

Designed for storing larger parts that vary in size and height like nose cones, fan blades, pipes, and housings.

Best for heavy items that may require crane assist, oversized components, or critical inventory that needs enhanced security options.

Standard Features

Each machine is built exactly around every application, with a customized design that reflects inventory, workflow, and space constraints.

Aviation Upgrades

Pick-o-Light® LED Indicator for immediate compartment identification when picking.

PictureControl® for photographic logging of every transaction.

Fold-down support rails to pull shelves outside of the access housing to allow for crane assist with heavy items.

Transport Carts to remove shelves temporarily from the machine for easy item transport throughout the shop.

RFID Badge Scanners for secure access for authorized users.

HänelSoft inventory management software for supporting  advanced tracking that includes part images and visibility across both static shelving and Hänel machine inventory.

Specs

Max Machine Height: 60 Feet

Max Machine Width: 5,017 mm

Max Machine Depth: 4,150 mm

Max Payload per Shelf: 2,200 lbs

Max Payload per Machine: 132,000 lbs

Max Shelf Depth: 1,270 mm

Max Shelf Width: 4,460 mm

The Principle

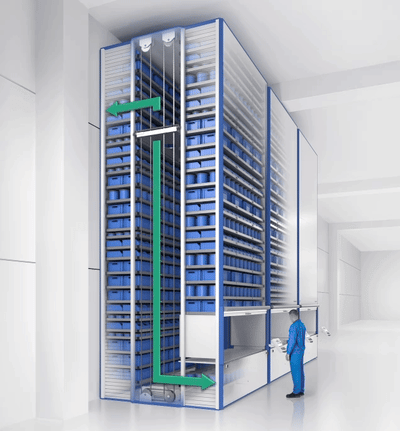

Lean-Lift-Landingpage


Options to remove trays from storage machines for crane assist.
Options to remove trays from storage machines for crane assist.
Multiple vertical lift modules directly in the MRO hangar.
Multiple vertical lift modules directly in the MRO hangar.
Storage of irregular items like pipes.
Storage of irregular items like pipes.
Blade storage in custom fitted containers.
Blade storage in custom fitted containers.

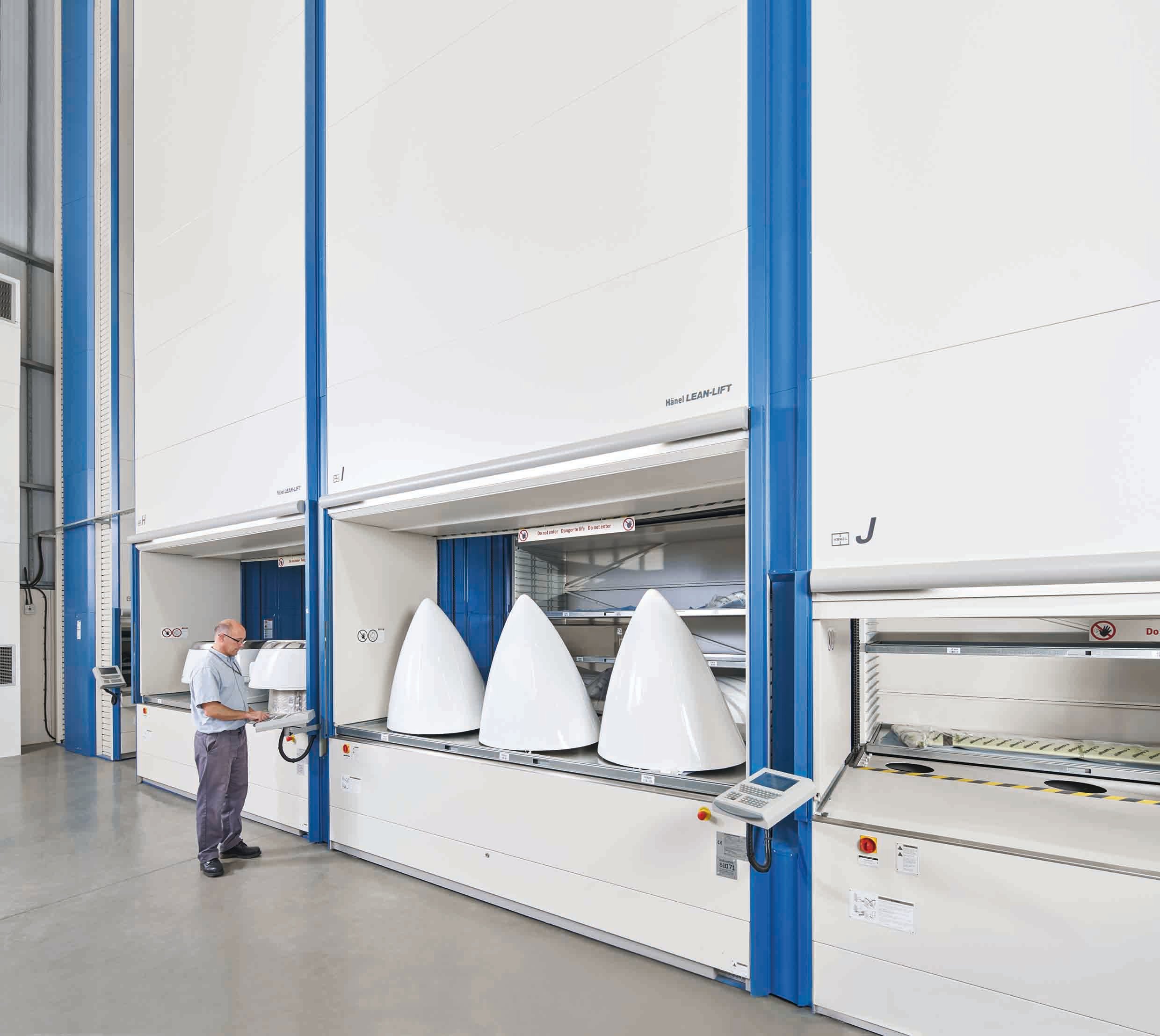

UK Customer All Aero Storing Nose Cones in custom large access opening.
UK Customer All Aero Storing Nose Cones in custom large access opening.

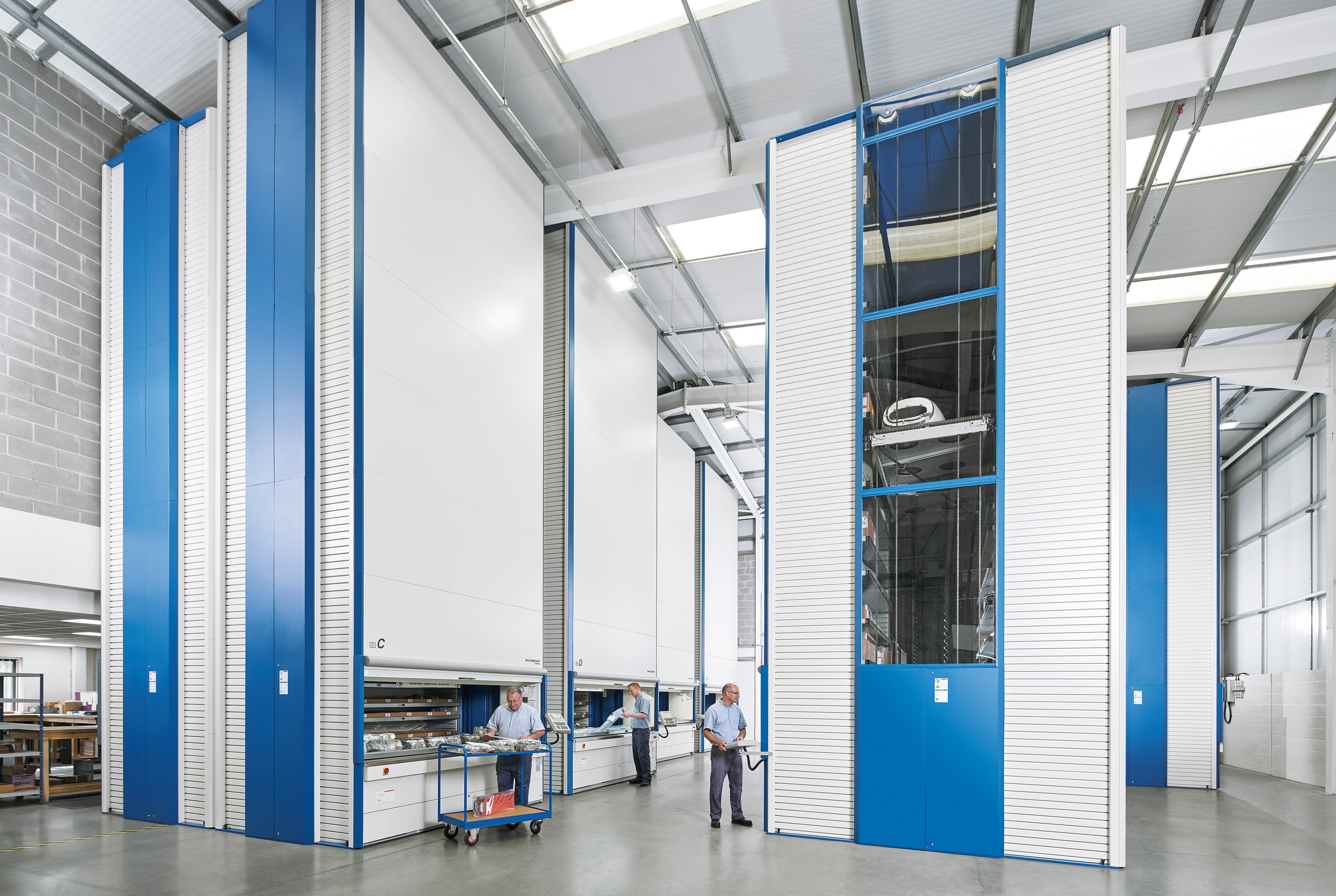

Fully automated warehouse using Hänel Lean-Lifts® for areoparts distribution center based in the UK.
Fully automated warehouse using Hänel Lean-Lifts® for areoparts distribution center based in the UK.

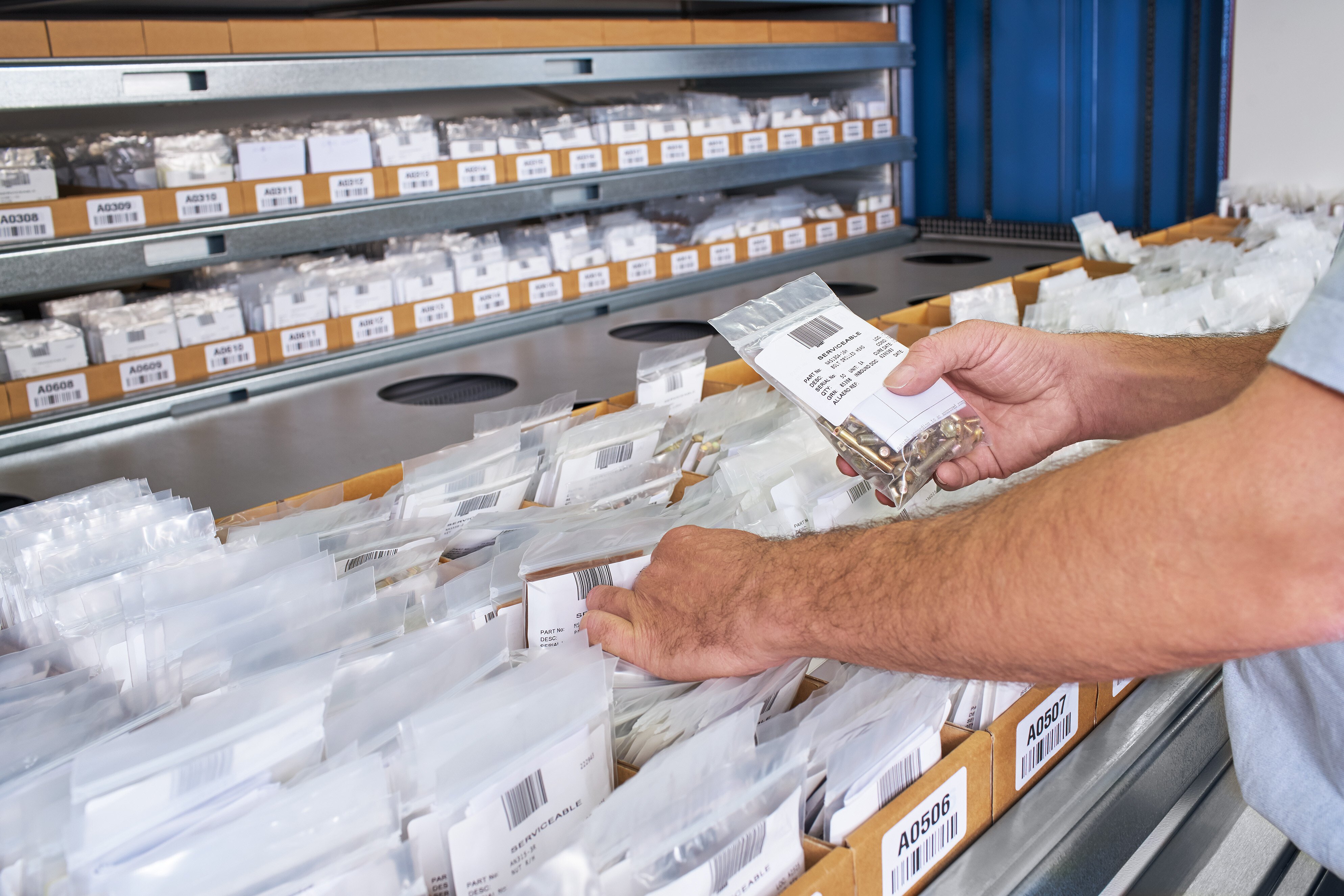

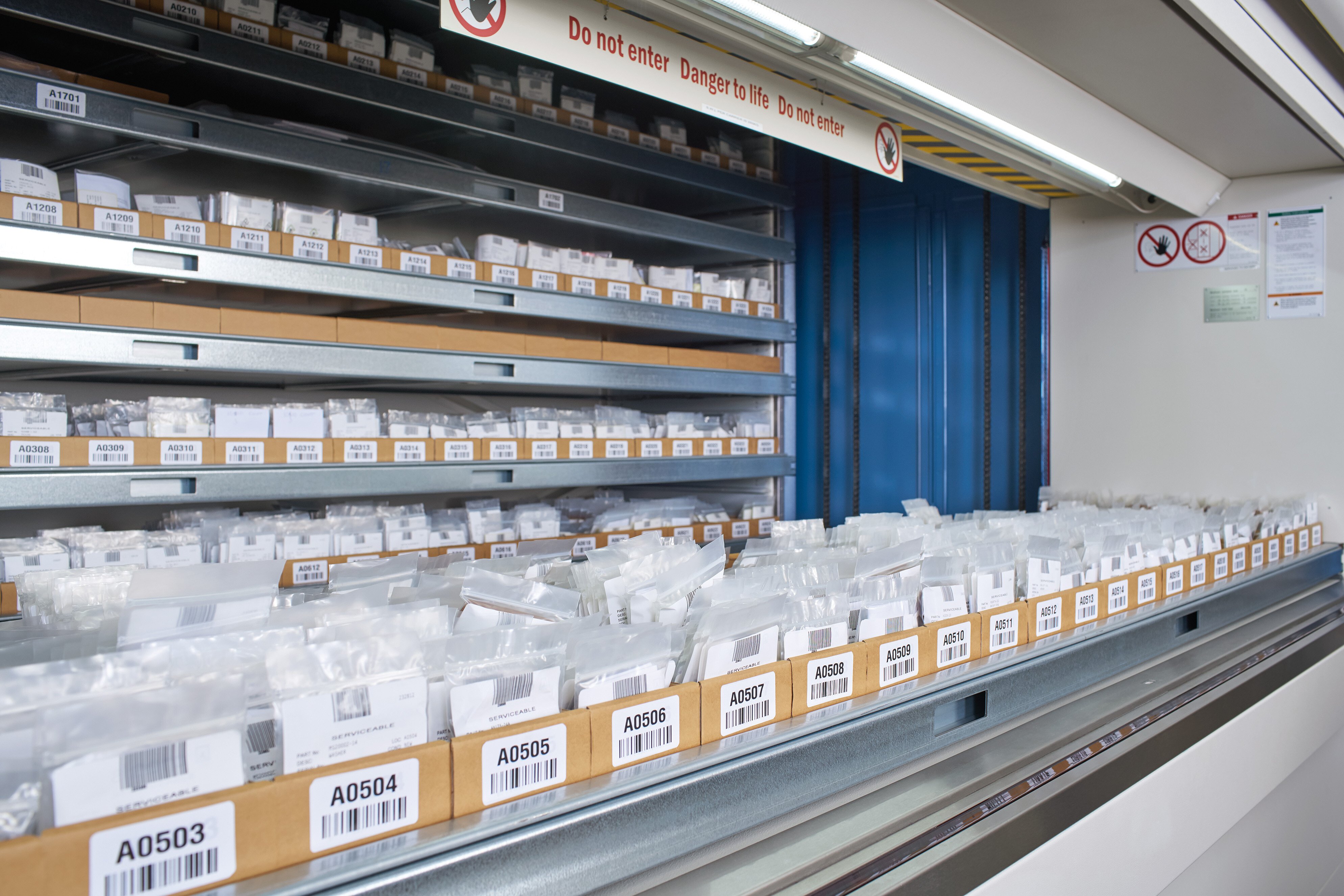

Small hardware kits stored in sectioned bins with barcodes.
Small hardware kits stored in sectioned bins with barcodes.

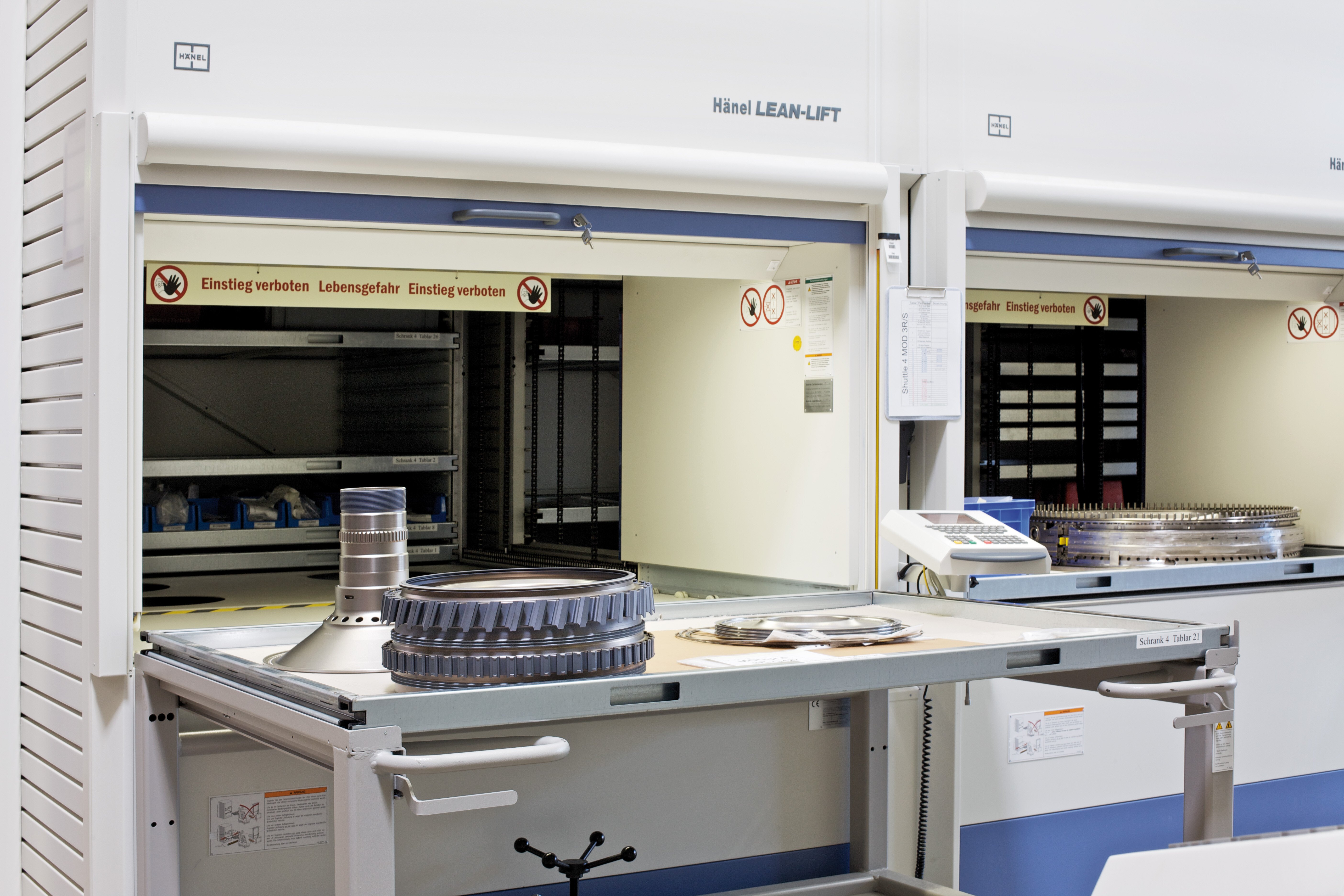

Turbine buffer storage in a Hänel Rotomat®.
Turbine buffer storage in a Hänel Rotomat®.

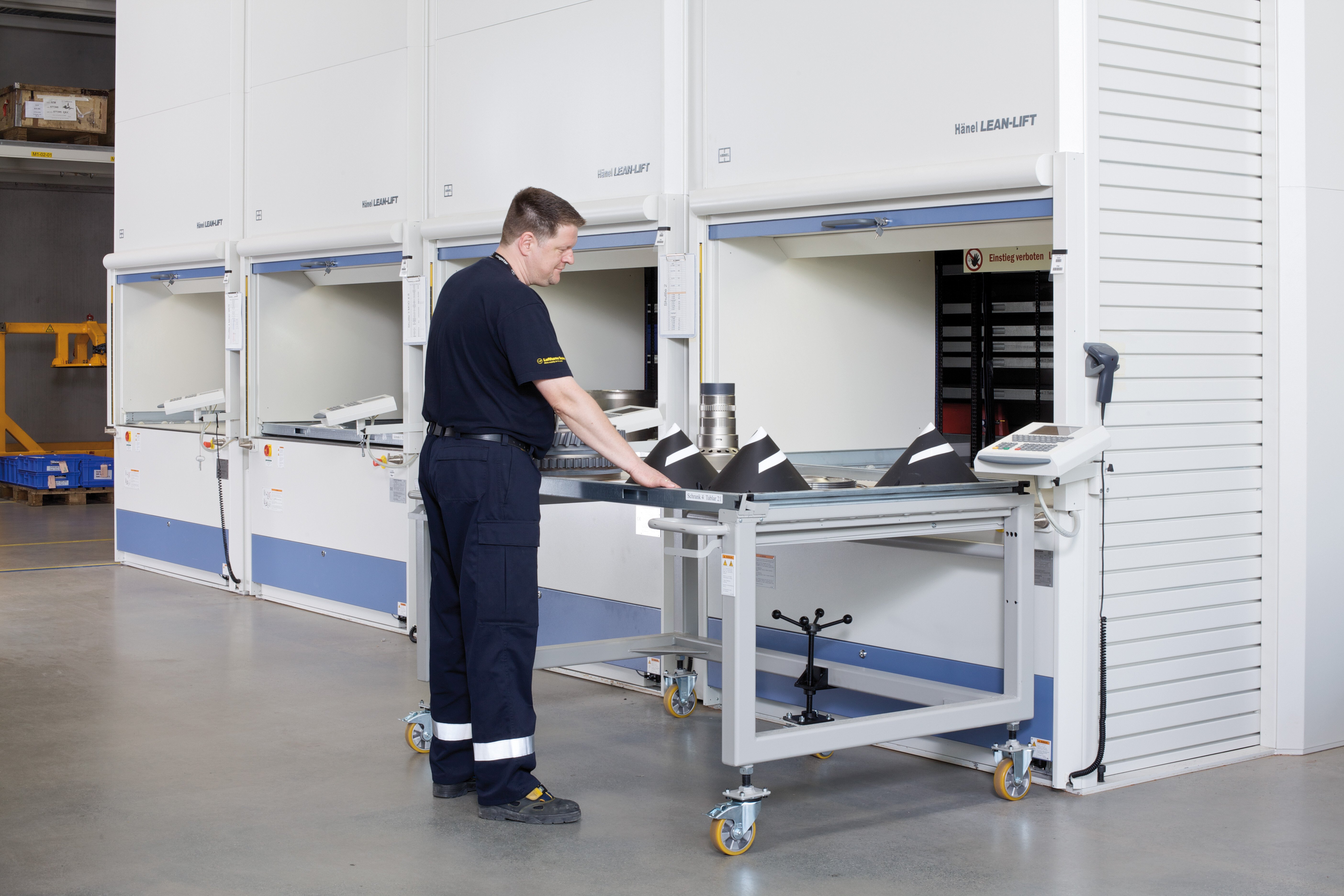

Transport carts with small nose sections for turbines.
Transport carts with small nose sections for turbines.

RESULTS THAT PERFORM

Trusted by Tier 1 Aviation Suppliers and MRO Teams Worldwide

Allaero Limited, an aircraft parts supplier located in the hub of the UK  business aviation industry, needed a solution for fast order fulfillment for grounded planes after reaching their warehouse capacity with standard pallet racking .

See how they reduced order fulfillment to as little as 15 minutes from receipt to shipping while increasing their warehouse capacity, without expanding their footprint.
